Parking Management System Program

Summarize

With the increase of motor vehicles, vehicle management put forward higher request. The way of artificial management in the past can’t meet the needs of the development of modernization, aiming at high speed, the fast rhythm of the working pattern, management methods and the system have a basic improvement. Those improved not only adapt to the requirement of residential area, but also must adapt to the needs of society, meet people's demands, habit needs and senses.

But by present, there is not any high-tech product can entirely instead of human manual operation. It cannot completely replace the people's thinking and way of thinking. Therefore when we are deal with automation management system design, as far as possible, emphasize automation but should not be neglected in the manual intervention, if can combined skillfully those two factors, it will reach twice result with half effort.

Especially for high-grade residential area, according to its exist design to customizely install a set of perfect function and elegant appearance of intelligent management system, which can reflect its class and specifications and increase the content of science, as well as technology management.

It benefit from establishing residential high-level management and increasing reputation of building as well.

This design is based on the above, specificed to the actual situation of the vehicle management and combined with modern technology to complete.

Functions
1>System using standard protocol of the physical layer, data link layer and network 3 layers, architecture model, thereby ensuring system of real-time communication and data exchange of safety and reliability.
2>For inductive card can undertake various operation and operation function setting; Various cards to adapt to different user requirements.
3>Super capacity: can reach up to 1,000,000 stored records
4>User defined charging standard, providing calculate time and discount monthly pay etc, flexible billing function.
5>Effective function setting card read when car pass by
6>Achieve one car with onecard, "prevent turn-back" function.
7>Provides the opening or closing of barrier control commands.
8>With such status function as internal state, barrier state, vehicle detection stata and reset function.
9>System can realize manual control and automatic control.
10>Alarm function for illegal operation and fault detection.
11>System has its automatic fault detection & diagnosis, self-replacement function.
12>System has strong resistance interference function.
13>System realize the route management module at its real meaning, all external equipment cascade into routing management model.

Physically, if one module routing equipment malfunction, other part is not affected. data communication automatic control of each distribution equipment are independent and isolate to complete, with high reliability, good scalability and easy maintenance.

Program description

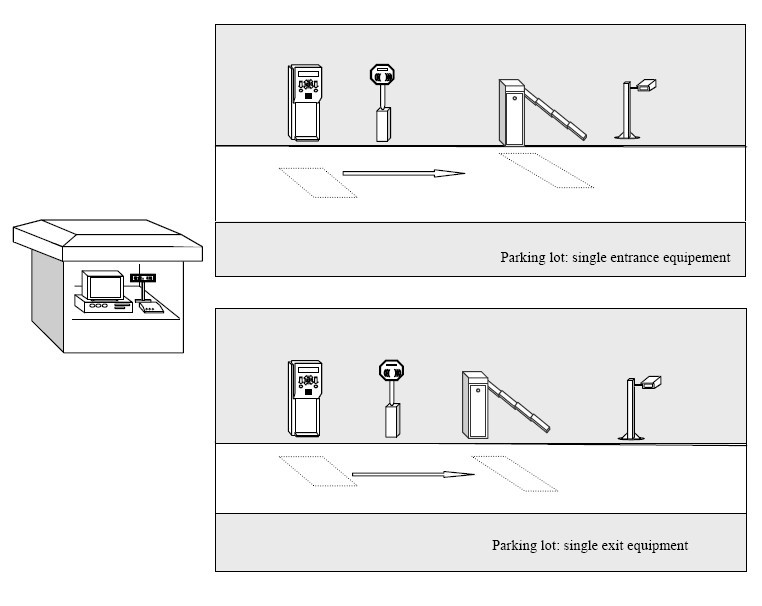

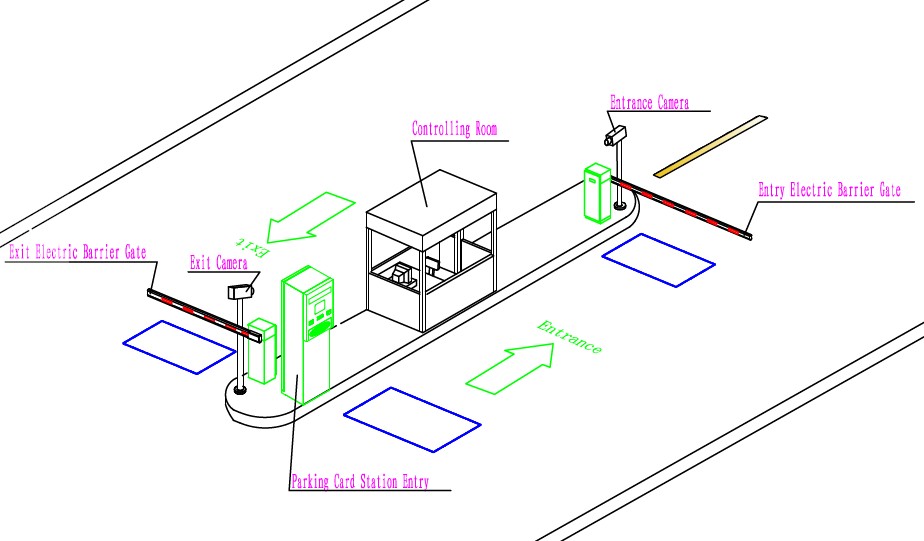

The features of this scheme is utilizing the configuration of “one entrance and one exit” standard parking system and adopting the toll station mode.
Characteristic as follows：
a) Temporary user press button to get card when entry.
b) When the temporary user exit, they must pay charge in the toll station frist,then put the card into the card reclaimer, finally the barrier gate will open.
c) When the month user entry or exit, swiping their month card in the middle range card reader, then the barrier gate will auto-open.
d) Snap photograph and comparision for temporary car and month car are available
e) Parking card using intelligent induction ID card
